TICODE Direct Product Mark Barcode Scanner Wireless Handheld Scanner 1d 2d Qr Code Scanner Lectores Codigo De Barras

Name: TICODE Direct Product Mark Barcode Scanner Wireless Handheld Scanner 1d 2d Qr Code Scanner Lectores Codigo De Barras
Brand: RiCODE
Price: 1 USD

Quality TICODE Direct Product Mark Barcode Scanner Wireless Handheld Scanner 1d 2d Qr Code Scanner Lectores Codigo De Barras for sale

private mold : Yes

products status : Stock

type : Barcode Scanner

scan element type : CMOS

colour depth : 32 Bit

interface type : usb, RS232

max paper size : A4

optical resolution : Million Pixels

scan speed : 150

Brand Name : RiCODE

Place of Origin : Guangdong, China

warranty(year) : 1-Year

after-sales service : Repair, Free spare parts, Call Center and on-line Technical Support

software development kit (sdk) : NO

color : Blue, Black

Product name : 2D Barcode Scanner

Application : Heavy Industry

Light source : White LED

Interface : USB, RS232, P/S2

Decode Capabilities : 1D + 2D + QR Code

Resolution : Million pixels

Model Number : TI2820DP

Color : blue + black

Trigger Mode : Automatic Sensing & Manual

Certification : FCC, ce, RoHS, IP68

Contact Now

Product Overview

TICODE Direct Product Mark Barcode Scanner Wireless Handheld Scanner 1d 2d Qr Code Scanner Lectores Codigo De Barras

Parameter

Physical Parameters
Model Name	TI2820DP
Input Voltage	DC5V , ±0.25V
DC Current	420 mA(working); 120mA(standby)
Indicator	Buzzer & LED Indicator
Interface	USB, RS232, P/S2
Shield Material	dual-color ABS/PC+TPU; single-color ABS+PC; transparent: PC;
Performance Parameters
Module	2D Imager 1280*960
Code Contrast	≥20%
Resolution	≥3mil, Linear 2500pixels
Codes range	1D, 2D, DPM, monitor-displayed
2D Code types	QR Code, MicroQR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode etc.
1D Code types	UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
Angle Tolerance	Skew ±70°, Pitch ±70°, Roll 360°
Mode setting	Set by scanning functional Code
Shock Resistance	Withstand multiple drops from 2m to comcrete surface

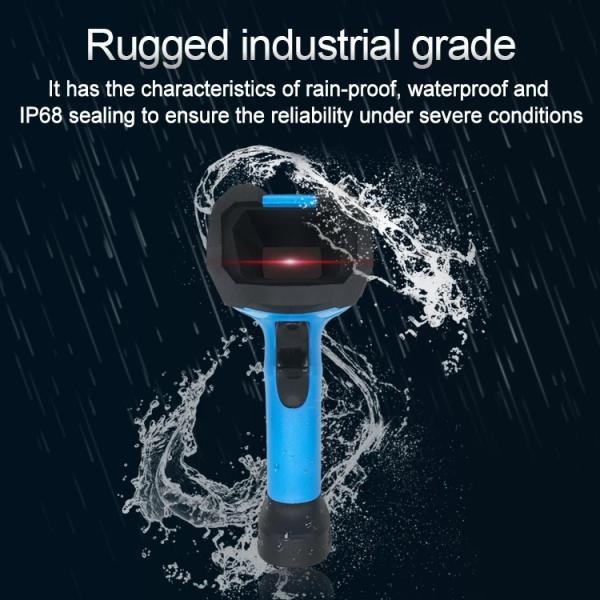

Dust & Water proof	IP68
Environment Parameters
Environment Temperature	-20°C ~55°C (working); -40°C ~70°C (storage)
Environment Humidity	5~95% (Non-condensing)
Environment Luminance	0 ~ 100,000 Lux
Certification
CE RoHS FCC IP68

TICODE Direct Product Mark Barcode Scanner Wireless Handheld Scanner 1d 2d Qr Code Scanner Lectores Codigo De Barras Images
